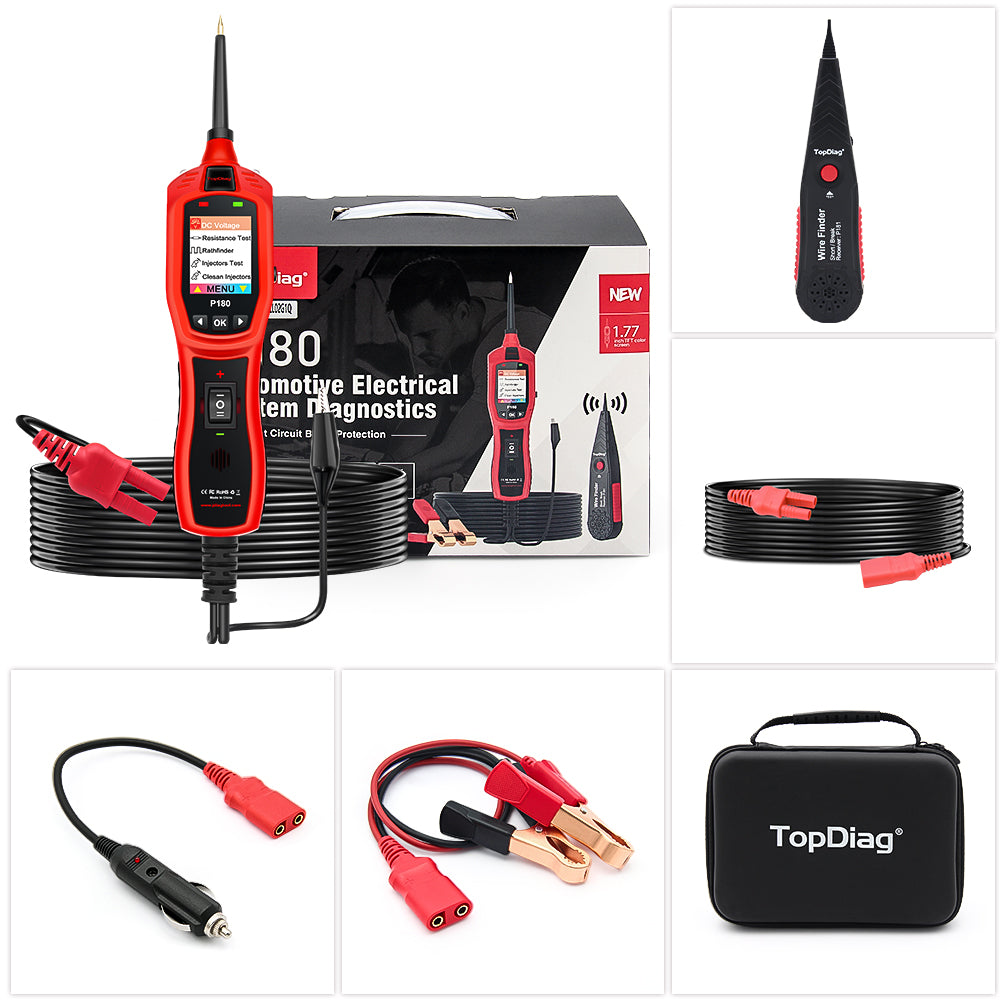

Topdiag P180 is an electrical tester for the diagnosis of electrical systems in vehiclesfrom 6 to 30 volts.It is easy to operate and has a wide range of usefulness, after simply connecting the tool to the vehicle battery:
- Quickly diagnose positive and negative circuits.
- Accurately trace and locate broken wires.
- Battery health status analysis.
- Test for continuity using the built-in auxiliary ground lead.
- Press the power switch to test the function o electrical components by conducting positive or negative battery current to the probe tip without the use of jumper wires.
- Immediately tests for poor ground contact without voltage drop testing,Short circuit protection is also available.If overloaded,the intemal circuit breaker will trip.
- Trace and locate short circuits without wasting fuses.The tool's long cable allows you totest along the entire length of the vehicle,eliminating the need to constantly search for asuitable vehicle ground.
Model: P180
Product Size: 165*40*27MM
Display: TFF color display (160*128 DPI)
Power Supply: 9-30V DC power system power supply
Working Temperature: 0～60℃(32～140°F)
Storage Temperature: -40～70℃ (-40～158 °F) DC voltage
Measurement: 0V~200V≤1% error
AV Voltage Measurement: -100 VAC ~ +100 VAC
Resistance: 0.10-1MQ Inaccuracies≤0.5% (Remarks:below 200 inaccuracies 5%)
Frequency: 1Hz~1MHz
Trip Current :8AMPS for 1 hour 12AMPS less than 1 hour 16AMPS less than 5SEC
