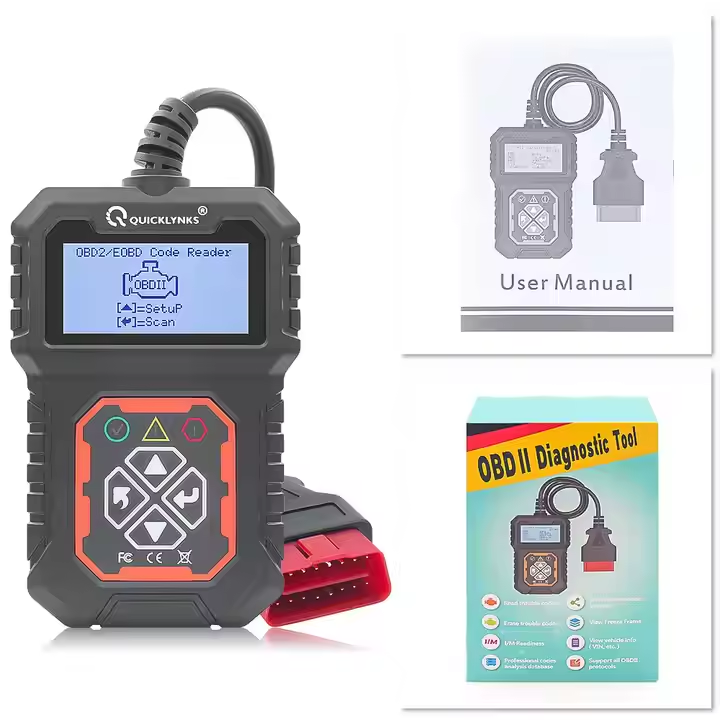

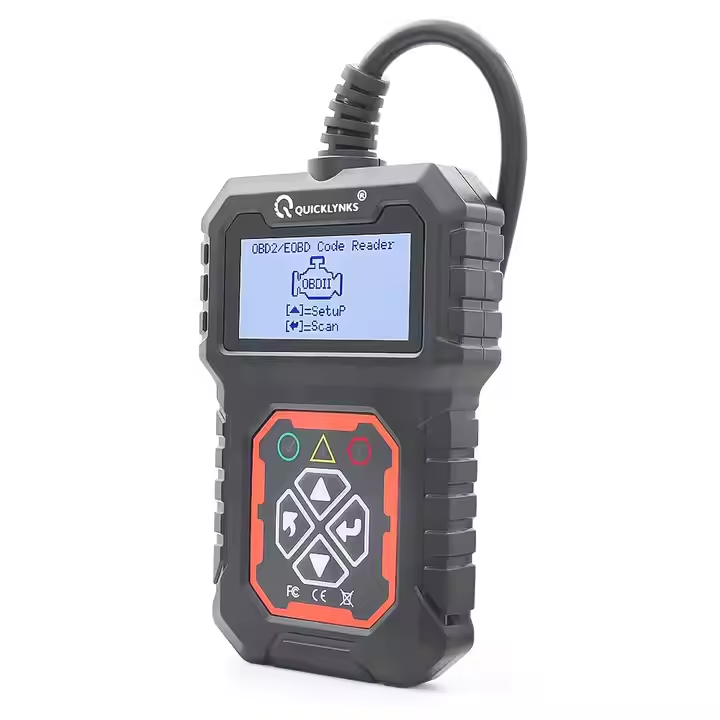

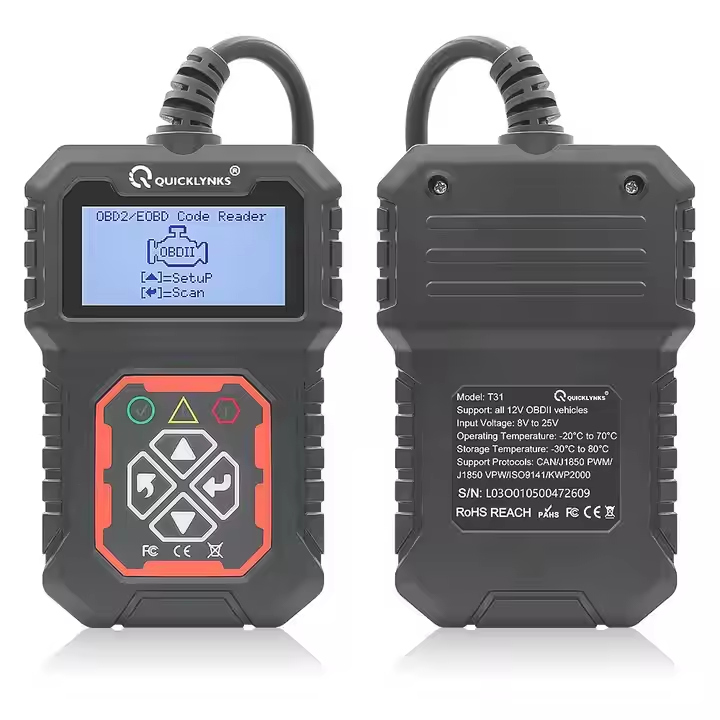

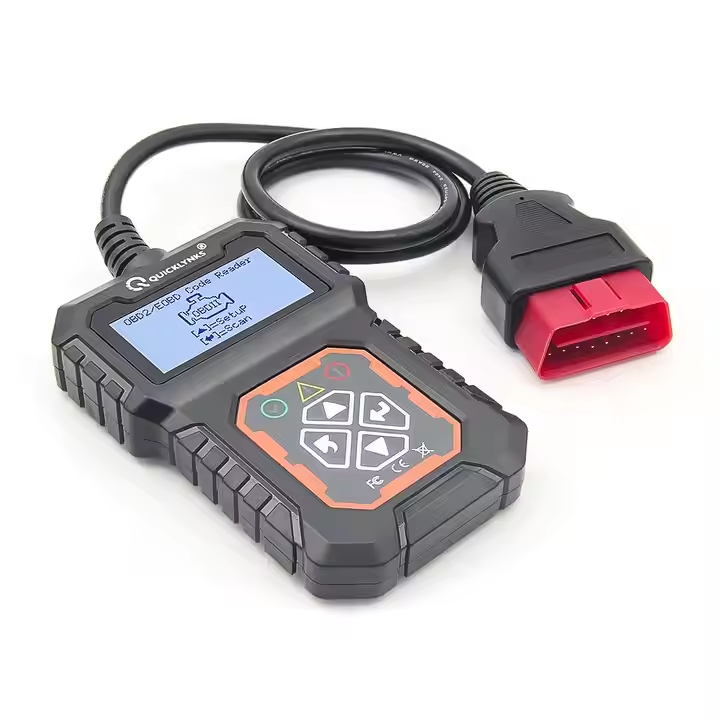

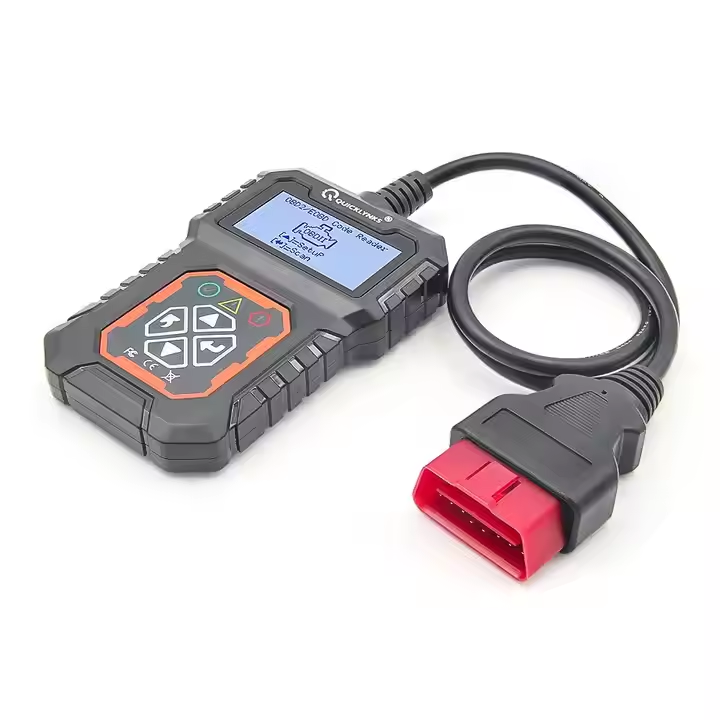

Quicklynks T31 OBDII & CAN car code reader scanner T31 is truly the ultimate in ease and affordability, enabling users to verify repairs,roadtest, check State Emission Monitor Status and solve basic engine and drive ability problems.
Function Description
(1) Dual-system diagnostic, optional engine and transmission.
(2) Quickly indicate engine faults, with green/ yellow / red LED indicators as fault lights.
(3) Read or clear the engine fault code and view DTC definition.
(4) Display of sensor data stream information, supporting 249 types of parameters.
(5) View freeze frame data and I/M status information.
(6) Read vehicle information:
vehicle identification number (VIN),
calibration identification number(IDs),
calibration verification number(CVNs)
(7) Multi-language.
Diagnostic Menu
(1) Read Codes Read the diagnostic trouble code(DTC) in the engine or transmission system and display the standard definition.
(2) Erase Codes: Clear all DTCs in the system.
(3) Data Stream Read and display all supported sensor data, up to 249 types of parameters.
(4) Freeze Frame The freeze frame data records the vehicle operating status information (fault code, vehicle speed, RPM, water temperature, etc.) at the moment when an emission-related fault occurs.
(5) I/M Readiness I/M Readiness function is used to check the operations of the Emission System on OBD2 compliant vehicles. Some latest vehicle models may support two types of I/M Readiness tests:
A.Since DTCs Cleared - indicates status of the monitors since the DTCs are erased.
B.This Drive Cycle - indicates status of monitors since the beginning of the current drive cycle.
“ OK ”: completed diagnostic testing
“ INC ”: not completed diagnostic testing
“ N/A ”: not supported
(6) Review vehicle identification number (VIN), calibration identification number(IDs), calibration verification number(CVNs)
|
ITEM
|
Quicklynks T31 OBD2 Scanner
|
|
Model
|
T31
|
|
Screen
|
LCD DISPLAY
|
|
Languages
|
Support English, German, Spanish, French, Dutch, Italian, Polish, Finnish, Russian, Portuguese
|
|
Compatible with
|
Standard OBD2 Protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
|
|
Functions
|
(1) Dual-system diagnostic, optional engine and transmission.
(2) Quickly indicate engine faults, with green/ yellow / red LED
indicators as fault lights.
(3) Read or clear the engine fault code and view DTC definition.
(4) Display of sensor data stream information, supporting 249 types of parameters.
(5) View freeze frame data and I/M status information.
(6) Read vehicle information: vehicle identification number (VIN), calibration identification number(IDs), calibration verification number(CVNs)
|
