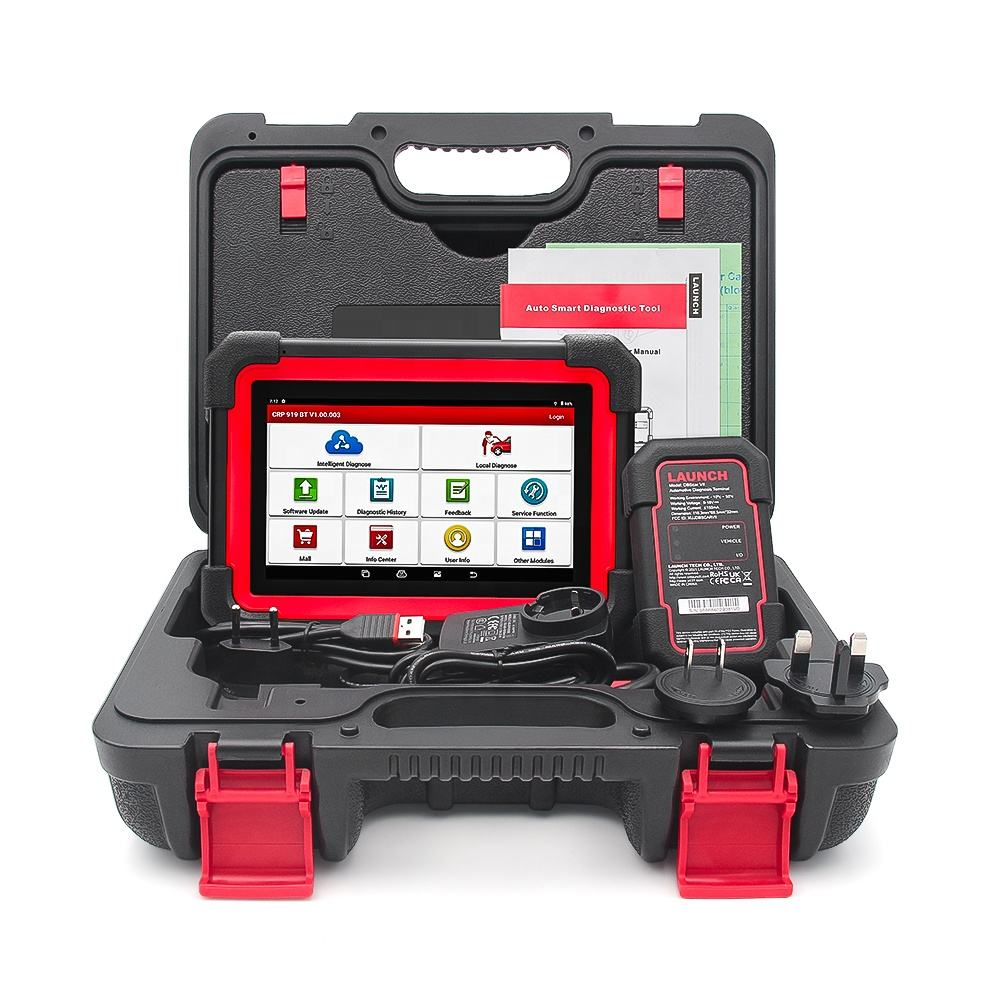

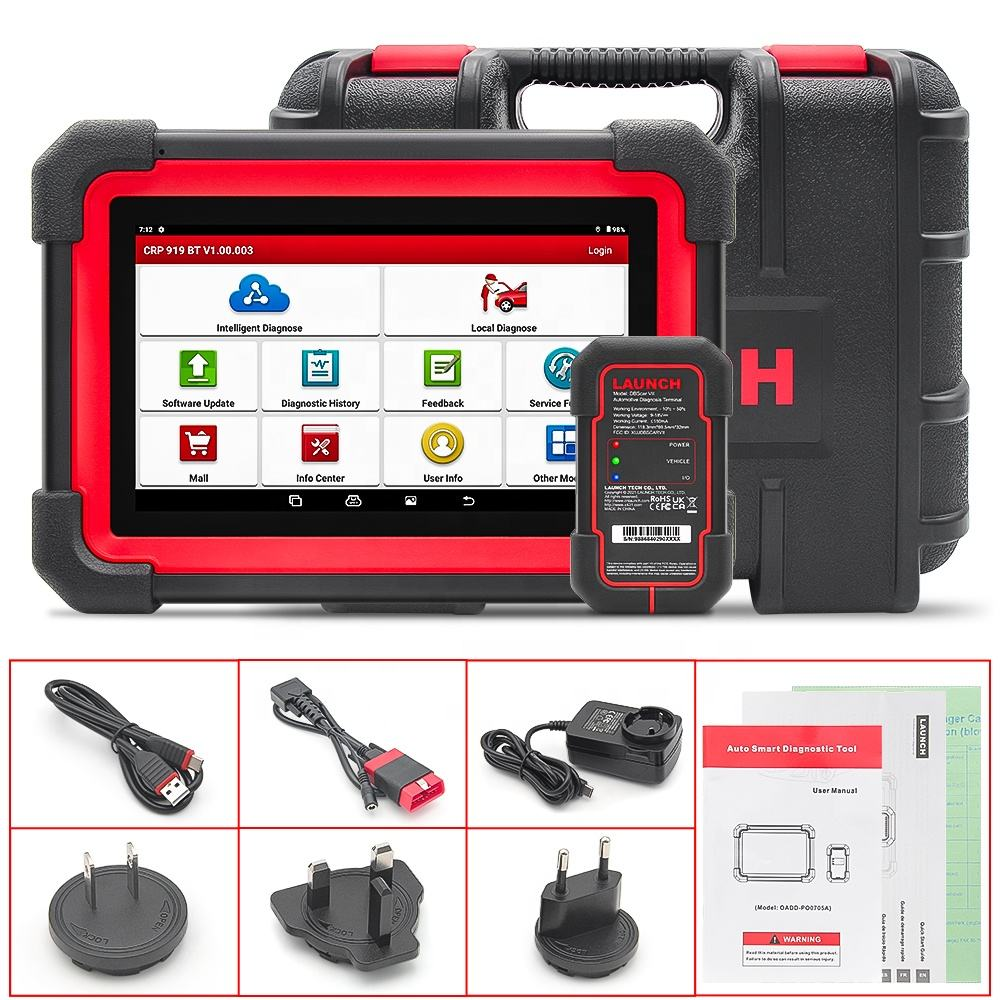

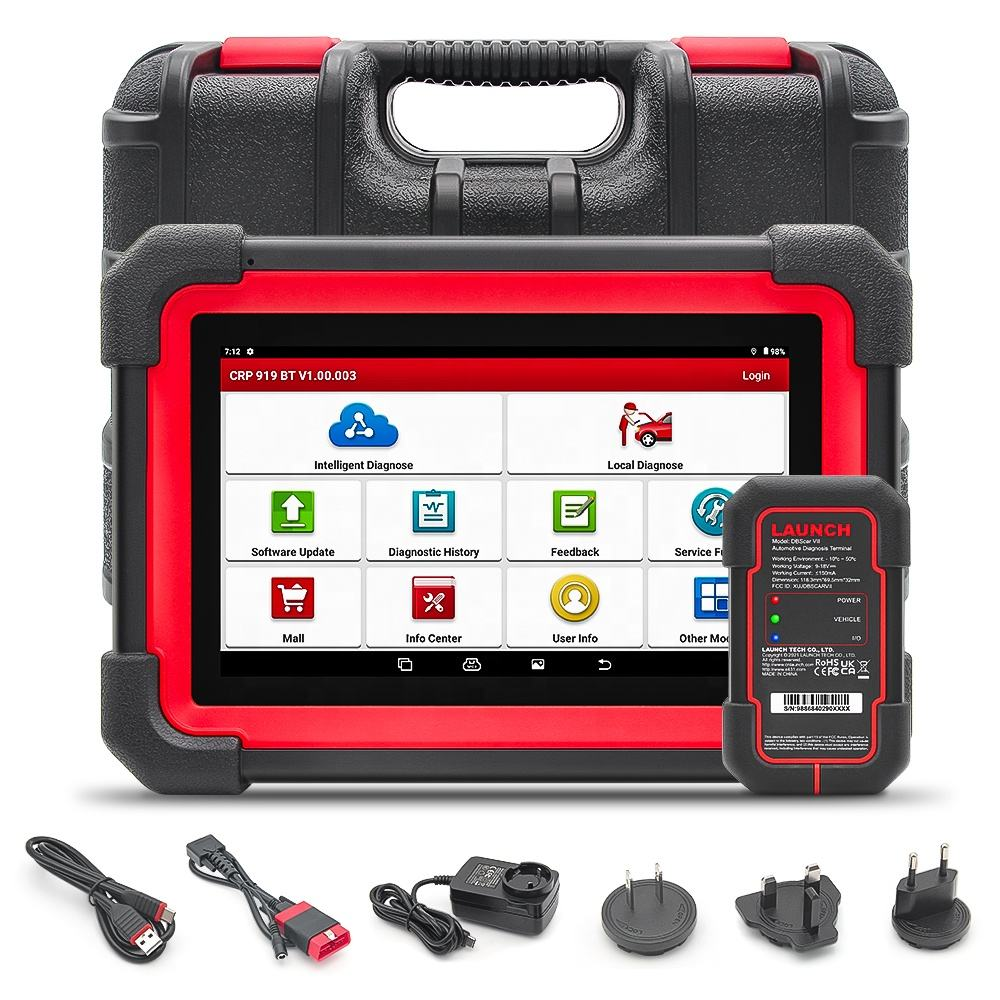

LAUNCH X431 CRP919E BT Car Diagnostic Tool with DBScar VII VCI Auto OBD OBD2 Scanner Supports Active Test ECU Coding CANFD DOIP 31+ Reset Services What is Launch X431 CRP 919E BT? Launch CRP 919E BT is a new generation of 7-inch automotive intelligent diagnostic equipment with superior hardware and super performance. The host adopts 2.0Ghz 4-core high-efficiency processor and 4GBRAM+64GBROM large storage based on Android 10.0 system and is equipped with a high-endurance battery, which make diagnosis faster, more stable and more durable; the product equips with the latest Car VII Bluetooth diagnostic connector on the basis of CRP 919E.
X431 CRP919E BT Features:

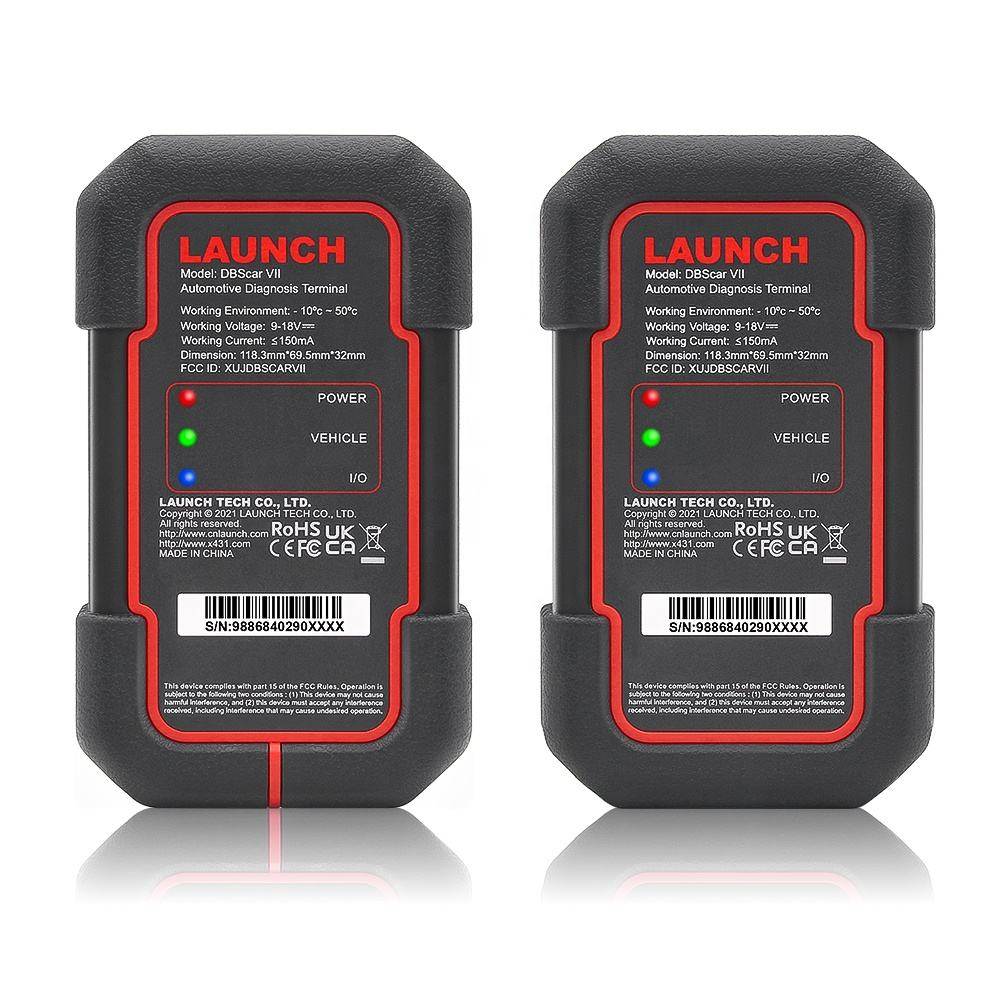

1. Connect car via BT with DBScar VII VCI.
2. Support CANFD and DOIP new protocols car.
3. Added Guide function of Audi, BMW.
4. More powerful configuration: 7’inch touch screen + Android 10.0 operating system, 4GB RAM + 64GB ROM Large storage and equipped with a 6300mAh high endurance battery, making diagnosis faster, more stable, and more durable
5. Two Years Free Update. You can work with CRP919EBT scan tool normally except online functions after it expires.
6. OE-Level Full system diagnose +ECU Coding + Active Test (Bi-Direction Control)
7. All System Diagnosis + 31 Reset Service + FCA Auto Auth
8. Auto VIN Scan
9. 23 language support: Italian, English, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Serbian, Finnish, Swedish, Czech, Simplified Chinese, chinese traditional
10. Over 115 Car Brands ,10000+ Models Supported
11. Compatible with BST360 battery tester
12. All-around upgraded of Launch scanner CRP909X/ XTOOL D7/ FOXWELL NT809/Autel MK808S
13. 4 in 1 Live Data Graph, Record and Playback live data
14. Code Search: quickly obtains the DTC definition and connects to “Google” for more online help & tips.
15. Global version has no IP limitation.
Launch X431 CRP919E BT Functions:
1.ECU Coding function ECU Online Coding:
Online Coding functions directly connect to OEM server,
quickly obtain the OEM online data from the server when the code data is lost, but Only Compatible with VW/ Audi/ Skoda/ Seat. Such as 1.Acoustical confirmation 2.Active Rear Spoiler 3.SiriusXM coding 4. Digital speedometer coding 5.Start & Stop button coding 6. Remote window control unlocking 7.Acoustic pedestrian protection 8.Active Cruise Control 9. Air conditioning setting memory 10.Automatic Air Recirculation 11.Ambient lighting brightness, And More .....
Component Matching:
After replacing faulty actuators or specific parts, it is necessary to utilize this function to generate a new code and detect the new actuators, such as Matching, relearning, calibration, or initialization adaptive data for certain components. Simply adhere to the on-screen instructions to erase the original memories saved in the ECU, and input the adaptive data into designated components. LAUNCH X431 IMMO Plus is a professional-grade diagnostic tool that will assist you in establishing stable communication between the new ECU modules with accuracy.
Personalization:
Unlock hidden features,deactivate annoying features. Modify the code to 1) personalize vehicle settings, 2) unlock vehicle potential, 3) activate advanced functions, and 4) disable certain features. Compatible with vehicles such as Mercedes-Benz, BMW, Porsche, etc. Such as 1. Deactivating the Start/Stop function, 2. Beeping when unlocking and
locking, 3. Disable seatbelt warning sounds, 4. Mirrors automatically folding and unfolding, and more.
Variant Coding(Offline Programming):
Variant coding involves programming ECUs to accommodate different vehicle variants, such as left-hand drive or right-hand drive. In some states/countries, automatic headlight activation while driving is mandatory, resulting in yet another vehicle variant. Variant coding encompasses the activation and deactivation of software-driven functions. Compatible with Nissan, for Nissan-GTR, for Infiniti, for Hyundai, etc.
Customize OE-Settings(Retrofit/Modification):
Designed to enhance vehicle performance and increase business profits, revise the default settings to modify the vehicle's original behavior, for instance, upgrade halogen fog lamps to xenon fog lamps, replace the battery with a higher capacity one, and install larger tires.x Additionally, incorporate adaptive cruise control, tire pressure monitoring system, and reversing radar through modification.
Programmable Module Installation- Function For Ford/Lincoin/Mazda, etc. When you replace or initialize a new/used module for Ford/Lincoln/Mazda, Launch CRP919EBT scanner allows you to copy the data from the original module and install it to the new unit to finish the module replacement.
Online Repair Source - Offers online repair guidance options including Operation Tips, DTC Help, Technology Handbook, relevant cases and more.
Built-in Google Browser - Provide a built-in Google browser that allows you to connect to the internet and search for resources online, making work more easier and convenient.
2.Professional Full System Diagnoses with All-Around & In-depth Diagnoses
LAUNCH X431 CRP919E BT automotive scanner can scan full modules like ECM(engine),
TCM(Transmission), ABS(Anti-Lock Braking System), SRS(Supplermental Restraint System), EPB(Electric Parking Brake), BCM(Body Control Module), EPS(Eletronic Power Steering), HVAC(Heat, Ventilation and Air Conditioning), TPMS(Tire Pressure Monitor System Reset) and more to perform OE level diagnostics to Read Codes, Clear Codes, Smog Test, Read Live Data, Freeze Frame, Evap Test, DTC Look Up, Detection Help, On-Board Monitor Test Mode, I/M Readiness Check, O.2 Sensor Test, Retrieve Ecu Information, Matching & Adaptations, ECU Coding, Active Test, allows you to get a Faster snd More Accurate Test Result On All Electronic Systems.
Extra Full OBD2 Functions It supports OBD ll functions to help you turn off the annoying instrument fault indicator and also can read/clear codes, O2 sensor test, I/M readiness, On-board monitor test, read data stream, display freeze frame data, EVAP system test, retrieve vehicle information (VIN, calibration ID, calibration verification numbers)
Powerful Bidirectional Control (Active Tests) \
Bi-Directional Control is a feature that allows for two-way communication and control between scanner and car systems. It enables drive solenoids and actuators for active testing, sending commands to the system/component to test its operating status without using the vehicle controls. By utilizing Bi-Directional Control, technicians, mechanicians, car dealer, auto repair shop, DIYer or individual owner can actively monitor and control the behavior of a system, let you quickly understand whether a specific system, component, or subsystem is operating normally. It provides a more comprehensive and interactive approach to testing and troubleshooting, allowing for efficient identification and resolution of issues, pinpoint issues and greatly improve diagnostic efficiency.
Frequently-used Active Tests including: Evap Tests/ Purge Solenoid/ Fuel Injector Test/ Cycling A/C Clutch Relay/ Cycling Abs Motor Pump/ Cooling Fan Test/ Headlamp Test/ Sunroof/ Operate Mirrors/ Turn On The Sound Horn/ Turn On The Radiator Fan/ Open/Close Windows/ Turn On/Off The Lights/ Test Door Lock Actuators/ A/C Compressor Activation/ Modulate The Throttle/ Compression Test/ Turn On/Off Front And Rear Side Acm Solenoid/ Turn The Fuel Pump On And Off/ Cycling The A/C/ Clutch On And Off/ Left Clutch Electromagnetic Coil Test/ Acceleration Device Test/ Oil Pressure Control Test/ Dynamic Camera Aiming/ Vehicle Level Position Calibration/ Brake Vacuum Pump/ Inlet And Outlet Valve Tests/ Open Brakes Tests/ Parking Brake Botors/ Wheel Speed Sensor Supply/...
Health Report&Feedback
Launch CRP919EBT can automatically generate health reports via One-Click, the scanner will carry out in-depth inspections and calibrations for your vehicles, and you can send share, print via email, or local save the report in scanner. LAUNCH CRP919EBT allows you to submit online feedback of your diagnostic problems to LAUNCH for analysis and troubleshooting. You can submit the detailed failure description to get valuable solutions.
8-in-1 Live Data Stream
Our Launch CRP919EBT can combine 8 graph in a page which will allows you to see what happened at what time and in relation to what else you're interested in, such as fuel pressure, battery voltage, cylinder misfire data, long/short fuel trim, engine rpm, etc. And You’ll easily focus on any symtom-specific or suspicious data parameters, the automotive diagnostic scanner allows maximum of 4 live data streams to be merged in one graph, Launch CRP919EBT also supports exporting data as CSV file, which can and save for a long time and share to pc, helping you further check potential problems of the vehicle.
Auto VIN & Auto Scan
Launch CRP919EBT bidirectional scan tool adopts the latest VIN-based Auto VIN Technology that enables auto technicians or home mechanics to identify vehicle information at a single touch, like Brand, Year, Make, Model, etc. With the Auto VIN and Auto Scan feature combined, CRP919EBT can perform comprehensive diagnostics accurately and efficiently. Note: Auto VIN function can NOT work on all cars. You can always navigate your vehicle through the menu manually to perform diagnostics and services.
3. 31+ OE-Level Maintenance Functions
ABS Bleeding: When the ABS contains air, the ABS bleeding function must be performed to bleed the brake
system to restore ABS brake sensitivity.
TPMS Reset: When due to the tire pressure is too low,tire leaks,tire pressure monitoring
device is replaced or installed,tire is replaced and tire pressure sensor is damaged,The tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.
Oil Lamp Reset: Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.
Electronic Throttle Sensor Reset: To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.
Injector Coding: After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.
SAS Reset: It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.
Brake-pad Reset: To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.
Gear Learning: Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.
IMMO Service: To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.
Battery Matching: Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.
DPF Regeneration: It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.
EGR Adaption: This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.
Suspension Matching: When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.
NOx Sensor Reset: If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.
Tyre Reset: This function is used to set the size parameters of the modified or replaced tire.
Windows Calibration: This feature is designed to perform door window matching to recover ECU initial memory.
Stop-start Reset: This function is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is the vehicle equipped with hidden function and hardware support)
AC Initialization: AC system relearn/initialization must be performed when the vehicle AC ECU or actuator is replaced or the ECU memory is lost.
AdBlue Reset: After the diesel exhaust treatment fluid (car urea) is replaced or filled up, the urea reset operation is required.
AFS Headlamp Reset: This function enables you to initialize the adaptive headlamp system.
A/F Reset: This function is applied to set or learn air/fuel rate parameters.
Gearbox Reset: This function enables you to complete the gearbox self-learning to improve gear shifting quality.
Coolant Bleeding: Use this function to activate the electronic water pump before venting the cooling system.
Transport Reset: To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open and disable remote key, etc. In this case, deactivating the transport mode is needed to recover the vehicle being normal.
Seat Calibration: This function is applied to match the seats with memory function that are replaced and repaired.
High Voltage Battery Detection: This function is used for high voltage battery diagnosis and status information detection.
Sunroof Initialization: This function enables you to set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car ,etc.
Engine Power Balance Monitoring: This function is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.
Language Change: This function is used to change system language of vehicle center console.note:you need to have language pack to do language change.
Gas Particulate Filter (GPF) Regeneration: This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resulting from a long time service of the GPF.
Intelligent Cruise Control System Reset: This function is used to matching the intelligent cruise control module after it is replaced or repaired.
Note: You can work with CRP919EBT scan tool normally except online functions after it expires.
4. More Other Functions:
IMMO KEY PROGRAMMING
Add/delete new fobs+ keyless remote+ Disable lost keys+ Rewrite smart keys+ Replace Knob Lgnition.
Note: The IMMO Keys function is designed for Asian vehicles that have low-grade anti-theft systems. If you need professional programming tool, you can consider Launch IMMO Plus Key Programmer. To check compatibility, please consult us through Amazon message system or Q/A.
VAG Guided Function
With VAG Guide Functions, CRP919EBT can skip the security access code & channel number to make step by step Instruction to perform complex functions such as special functions, ECU coding and more, compatible with Audi/Volkswagen/Skoda/Seat, etc.
Battery Voltage Test
Detect the battery’s voltage in real-time figure on the right top of the Launch CRP919EBT tool to ensure the system is operating in good condition. Change or replace the battery when it is below the normal value.
Extension Module Support, more are keeps growing
Launch CRP919E BT scan tool adds new extension modules to expand the diagnostic business and make diagnostics more accurate, if you are a dealer, you can receive additional repair orders and enhance your efficiency and technical skills. If you are a DIYer, you can save a significant amount of money and resolve more issues on your own.
CRP919E BT Vehicle Coverage:
150 + Brands Coverage: Covers 150+ Car Makers and 10000+ Vehicles in American, European, & Asian etc brands from 1996-2024. (Including 12V cars, light duty trucks, SUVs, minivans.)
Autoauth for FCA SGW
Use the latest software update function AutoAuth to provide systems diagnosis, active test, retrieve module info, ecu coding, etc., making the diagnostics more secure. Applicable to FCA vehicles(Chrysler, Dodge, Jeep, Fiat) equipped with a security gateway module (SGW) in 2017 and later. (Note: There is an annual $50 fee for Autoauth account, but the payment is charged by AutoAuth directly. LAUNCH is not involved in any transaction process.)
Fit for FCA Vehicles from 2017-2024 including.
CANFD&DOIP Protocols: The application of new protocols CAN FD/DOIP boosts 6x faster vehicle communication between modules, get much higher data rates & faster diagnostic speed than ever.
CANFD Protocol: CAN with flexible data rate (CAN FD) overcomes the limitations of the classical CAN bus in terms of data transfer rate. With advanced CRC algorithm and much wider compatibility, it will accommodate more data, run faster, improve communication speed, reduce the risk of missed.
Fit for GM Vehicles from 2020-2024 including.
DOIP Protocol (Need Purchase extra DOIP Connector): DoIP diagnostic function enables the use of diagnostics introduced via UDS on TCP/IP and Ethernet. This allows the LAUNCH CRP919E BT to save time and money when performing complex diagnostic tasks and flash memory applications.
Fit for BMW F&G chassis, Volvo models 2018 and later, Land Rover & Jaguar models 2017 and later, more keeps growing.
Supported languages
Supports 11+ menu language, on the home screen, tap Settings > System > Language & input >Languages, then you can change English itto Spanish, French, German, Russian, Italian, Portuguese, Japanese, Korean, Polish and Traditional Chinese, choose your native language without any sort of language barrier.
Tablet Specifications:
Operating system:Android 10.0
Processor: 2.0GHz, quad core
Memory: 4GB
Storage: 64GB
Display screen: 7-inch,LCD screen
Resolution: 1024 * 600
Camera: 8 megapixel rear mounted
WiFi: 2.4GHz
Battery: 6300mAh
