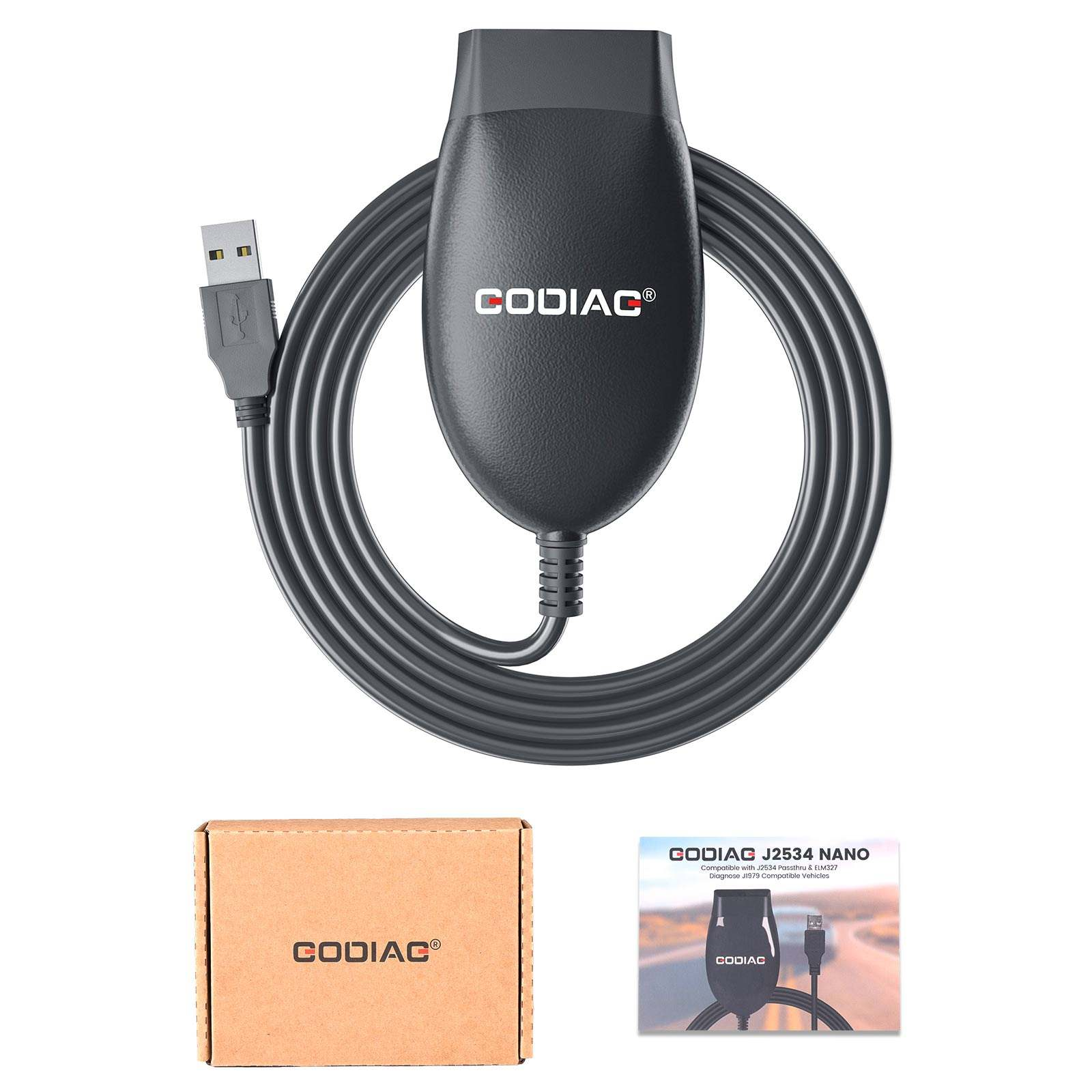

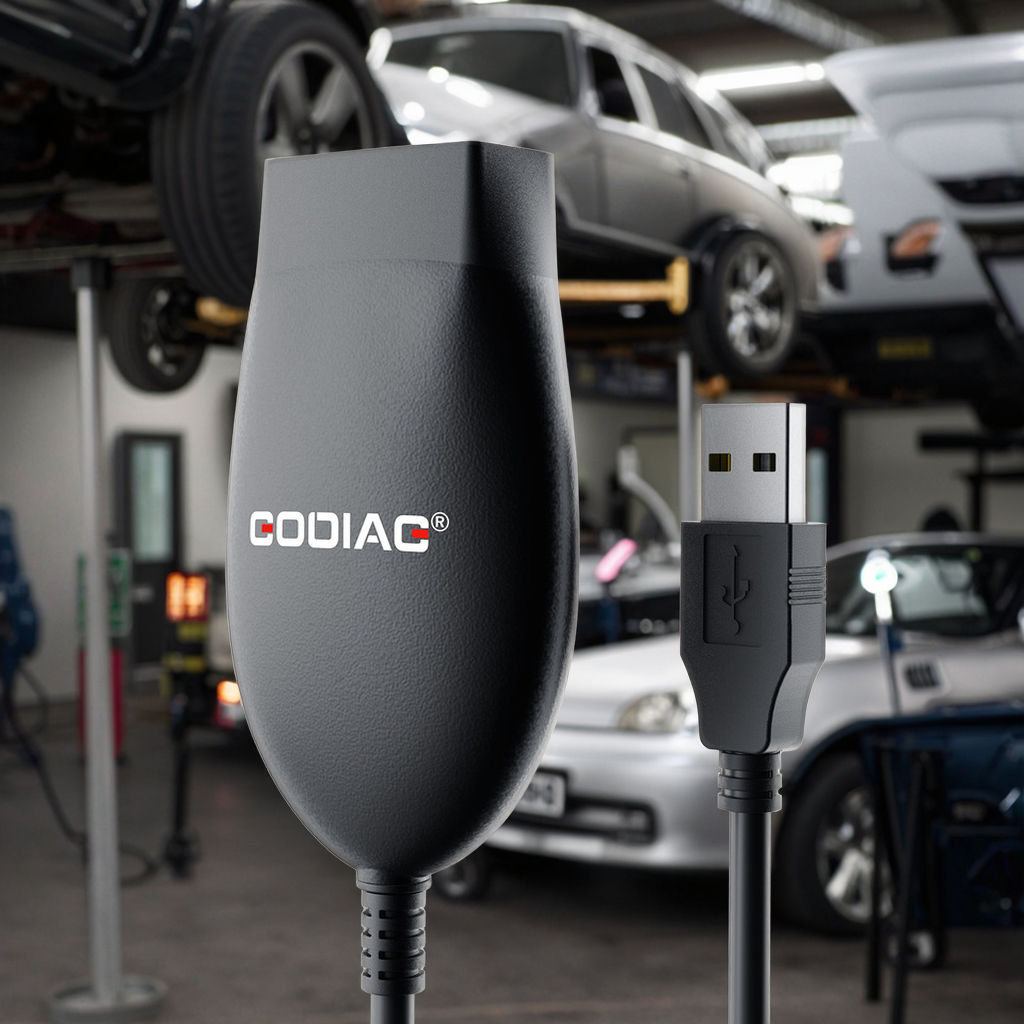

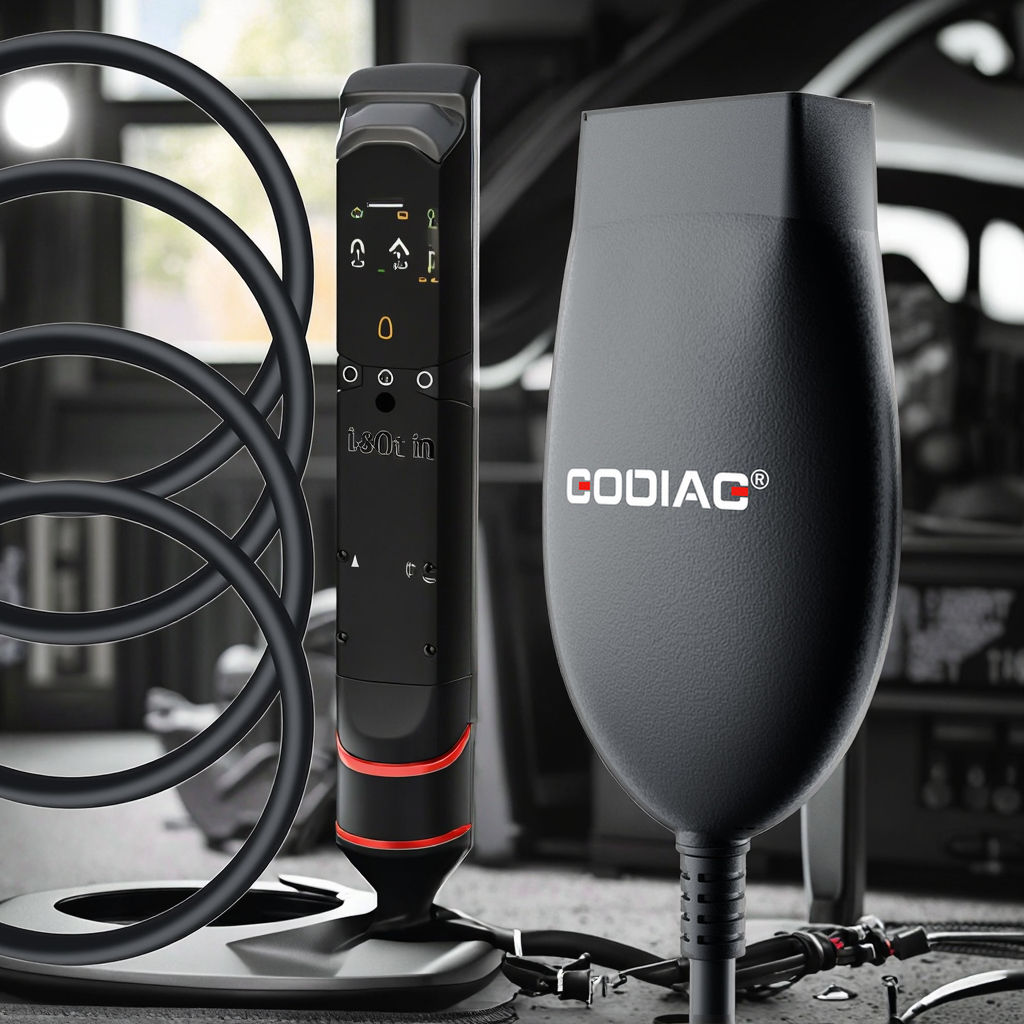

Support J2534 GODIAG GD101 J2534 Auto Diagnostic Cable J1979 Compatible Car Diagnostic Tool for Ford Mazda Toyota
1.GODIAG GD101 J2534 is compatible with for Honda V3.104.024, for Toyota V17.30.011,JLR SDD V163, Forscan V2.3.48, for Scanmaster V2.1, for PCM-Flash V1.2.0,VAG V9.1.0, for Renault Clip V230.
2.Works with J2534 Pass-thruand ELM327
GODIAG GD101 J2534 Highlights:
1. Compatible with for Honda V3.104.024, for Toyota V17.30.011, JLR SDD V163, Forscan V2.3.48,for scanmaster V2.1, pcm-flash 1.2.0, VAG V9.1.0 and for Renault Clip V227, for Renault Clip V230
2. More speedup. Faster communication and reprogramming.
3. More stability. Never let you down while reprogramming.
4. Portable and convenient. Small package and easy to carry.
5. Wok on Windows 8/10/11, 32/64bit.
6. Can't support MS-CAN
GODIAG GD101 J2534 Features:
1. Support most all of J2534 compatible software
2. Support most all of ELM327 software(ELMConfig,Forscan,ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.
Notice:
1.Software Free Download: Free Download Godiag J2534 V2.3 Software For Honda V3.104.024, for Toyota Techsteam V17.30.011, JLR SDD V163, Forscan 2.3.48, for Scanmaster v2.1,PCM-flash V1.2.0 and VAG V9.1.0, for Renault Clip V227/V230,
2. Not Support Win7 System

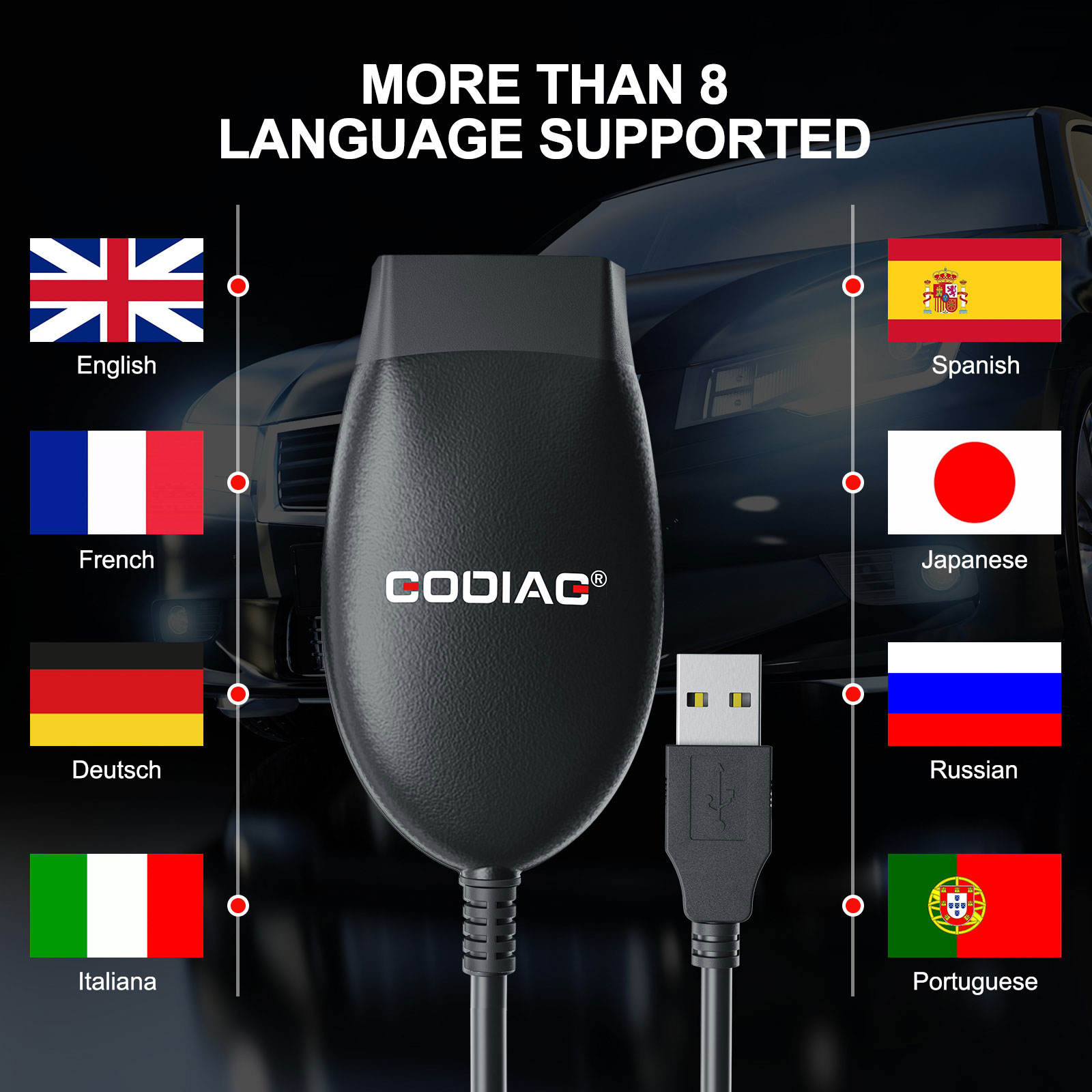

GODIAG GD101 J2534 Languages:
VAG V9.1.0 : English,Japanese,Portuguese, Romanian,Korean, Dutch, Polish, Turkish, Spanish, French,
Italian, Croatian, Danish, German,Swedish, Finnish, Slovenian, Czech, Russia, Greece, Chinese
for Toyota Techsteam: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
for Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian,Italian, Norwegian, Polish,
Portuguese,Russian,Slovenian,Spanish, Swedish, Turkish, Japanese,Chinese
JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish,Romanian,
Portuguese,Traditional Chinese, Simplified Chinese, Czech, Lithuanian,Slovak, Ukrainian
Scanmaster elm 327: English, Czech, German, Spanish, French,Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
Pcm-flash: English, Russian
Can Clip for Renault: English, German, Danish, Spanish, Finnish, French, Italian, Norwegian, Dutch, Portuguese, Romania, Swedish
GODIAG GD101 J2534 Protocol Configuration:
1.ISO15765(Standard/Extended frame).
2.ISO9141.
3.ISO14230.
4.J1850 PWM (Support IFR and 2X speed mode).
5.J1850 VPW (Support 4X speed mode).
6.Programming voltage.
7.Short to ground.
8.ELM327 with command set version 1.3a
GODIAG GD101 J2534 Hardware Configuration:
1.ISO11898-2high speed CAN (OBDII PIN 6 and PIN 14. Speed up to1000Kbps).
2.ISO9141 and ISO14230K line (OBDII PIN 7 and PIN 15).
3.J1850 PWM (OBDII PIN 2 and PIN 10).
4.J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13.Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
7.Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20C-45°C(-4°F-113°F)
9. Vehicle voltage requirements:8-18V DC

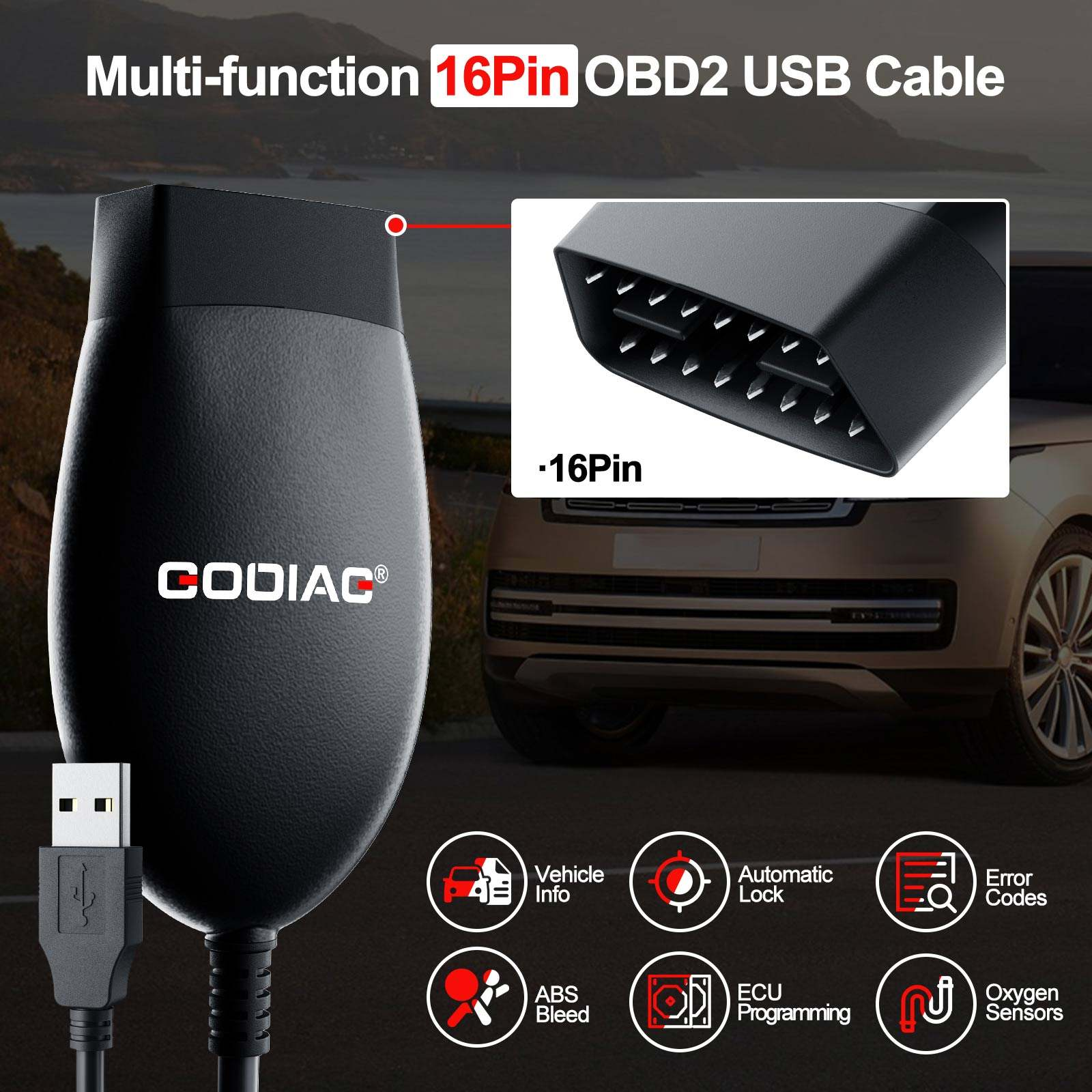

10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0
GODIAG J2534 Upgrade Notice
Driver Updated on 2023-8-16
GODIAG GD101 J2534 driver update to V2.3, Click to download V2.3
Support test for Renault Clip V227 for Renault year 2005+ for Renault with Can Bus Protocol
Software Firmware (March 31,2023)
1.Software upgrade to 2.1
2. Firmware upgrade to 1.8
Solve the following problems:
1. In J2534 mode, the sending length of J1850VPW is extended to4128
2. PyOBD software cannot be connected in ELM327 mode
3.ELM327 mode cannot read ISO9141 VINOpen the startup software, connect the device, and click upgrade firmware.
