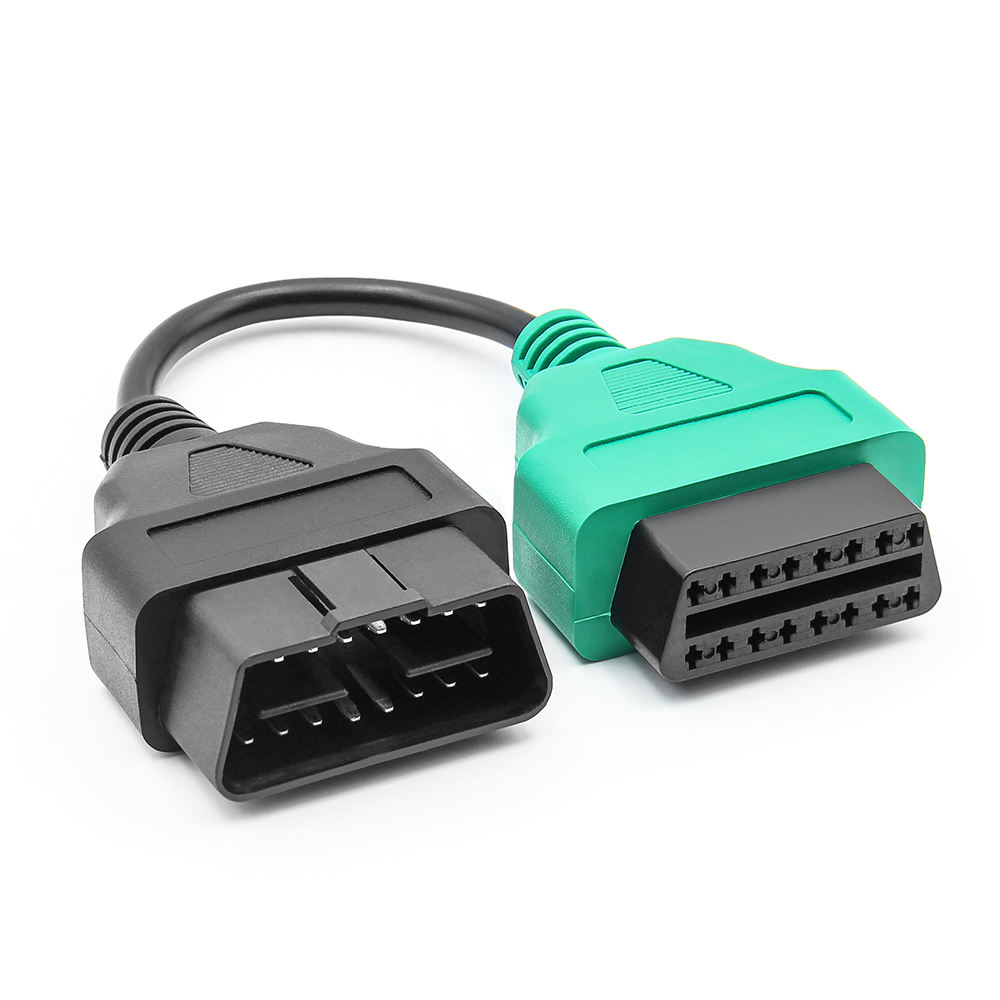

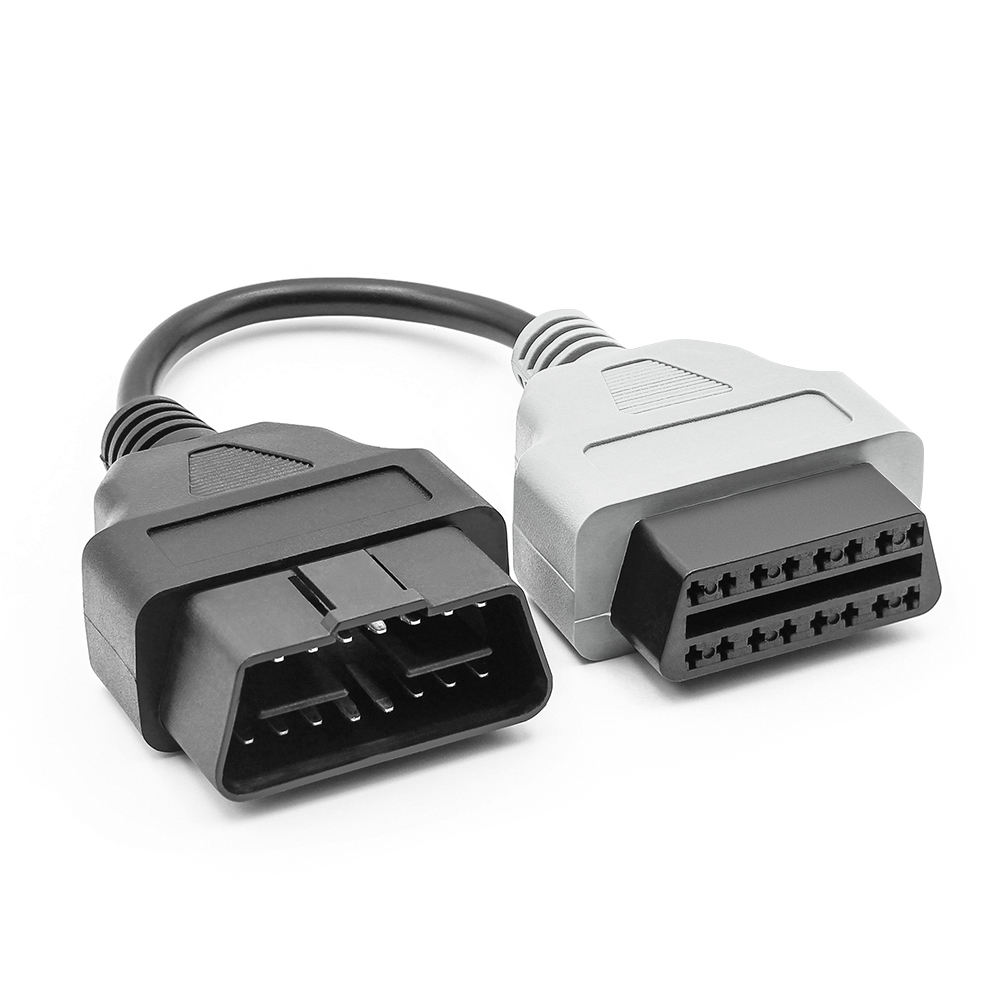

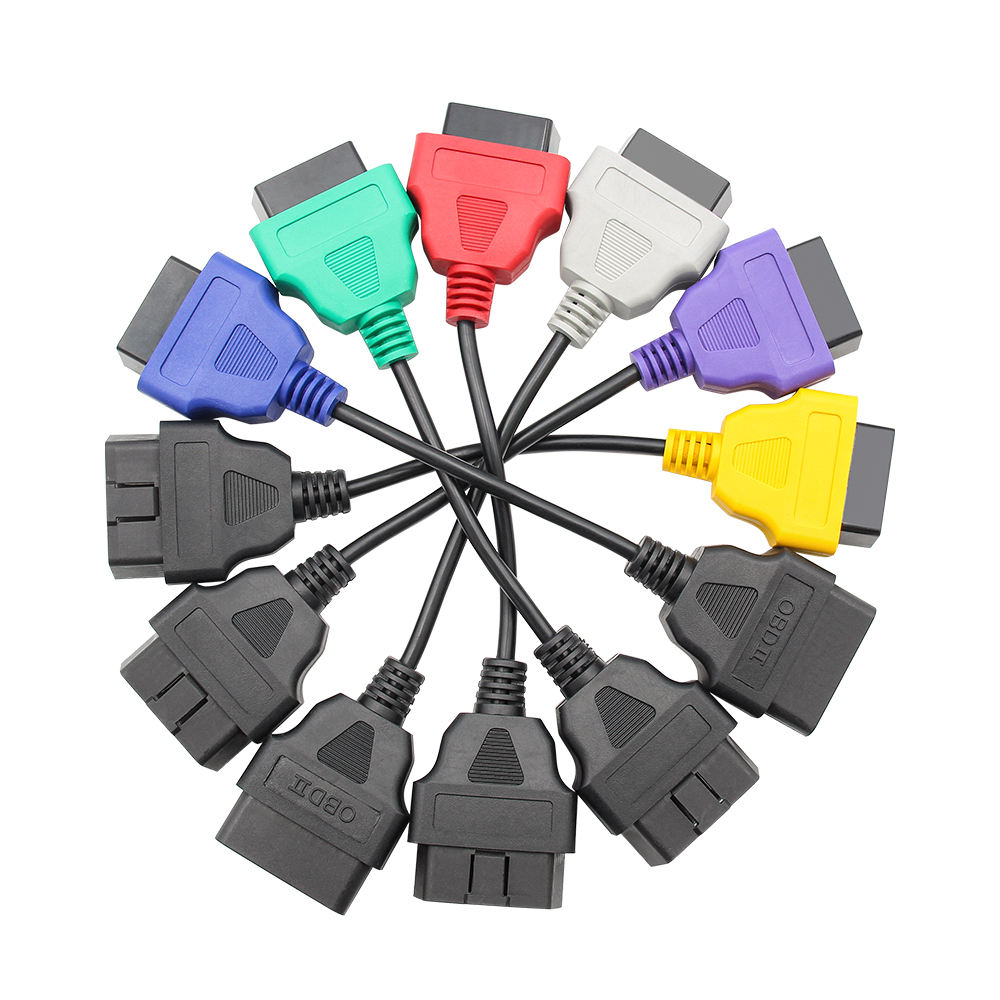

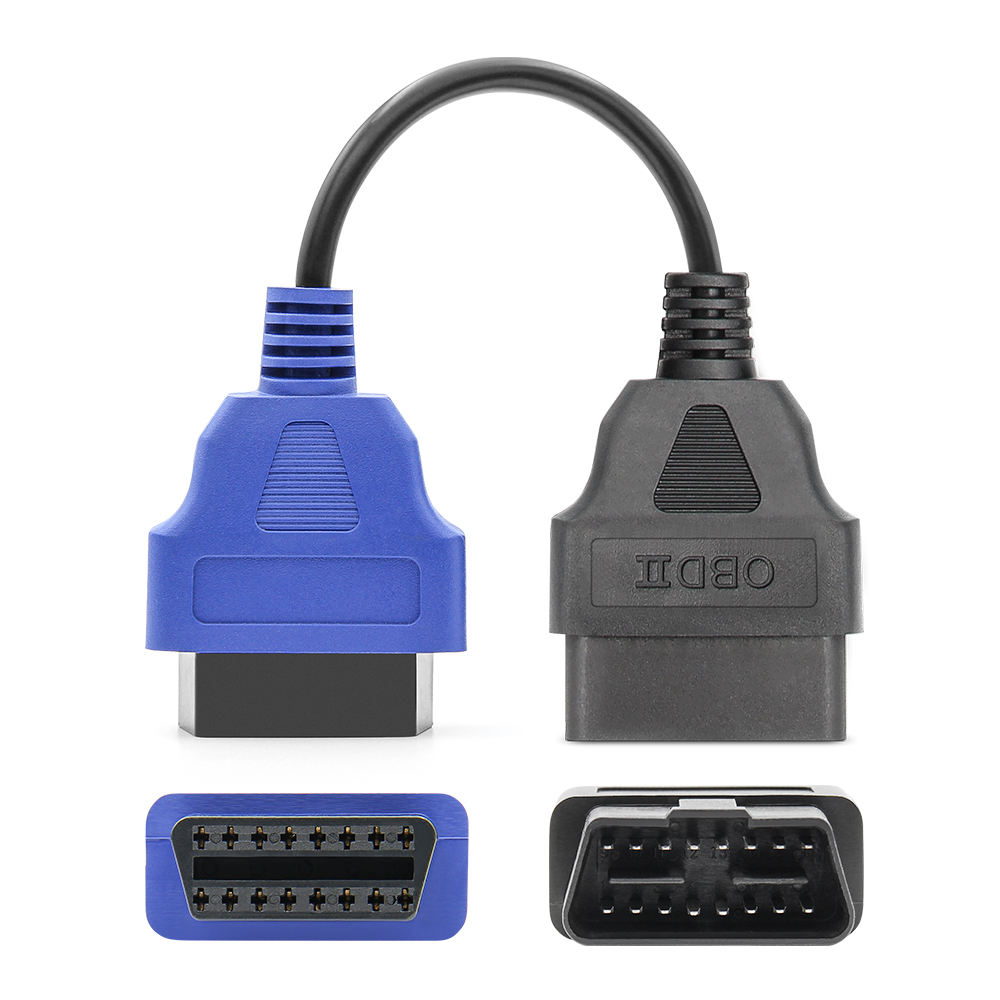

Green ABS / Power Steering adapter lead ( "Adapter 1" on MultiECUScan website)
-Designed to allow access to the ABS and Power Steering systems on supported vehicles.
This adapter has a green connector on one end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.
Red Cable

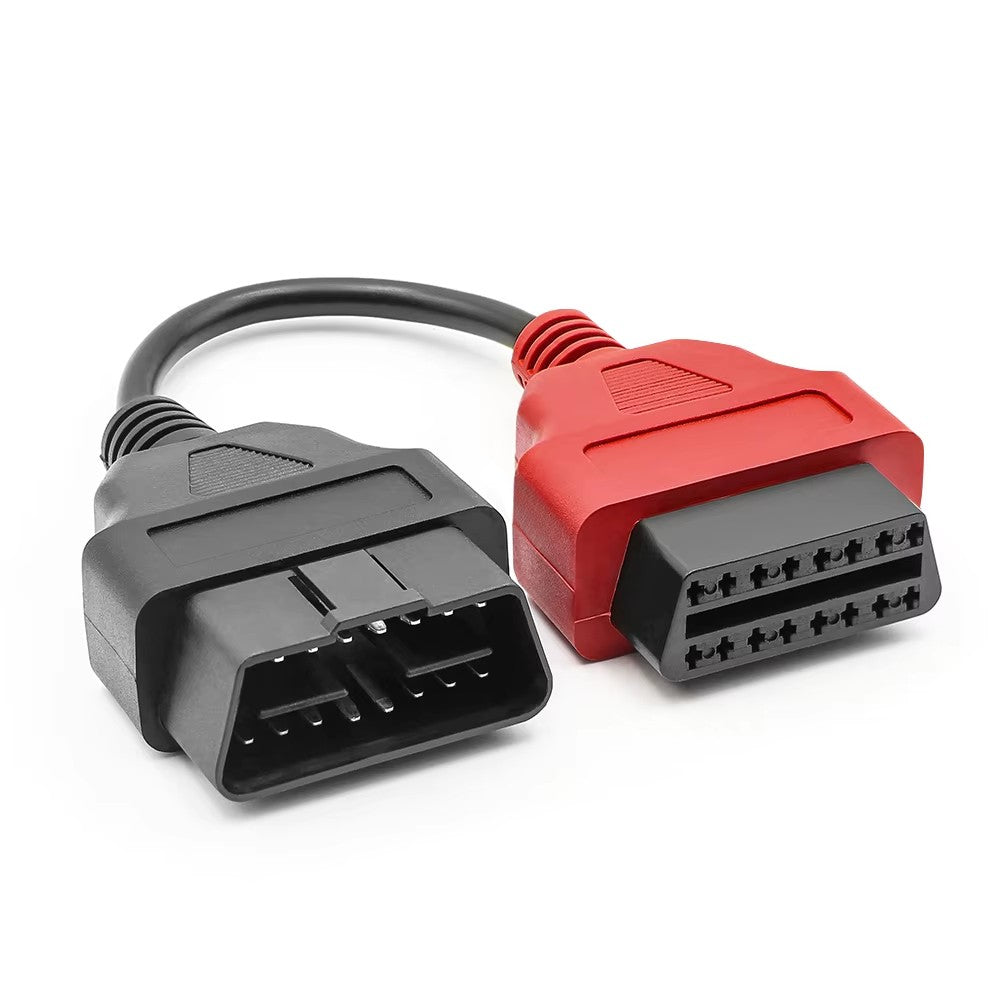

Red adapter lead ( "Adapter 2" on MultiECUScan website)
-Designed to allow access to the system on supported vehicles.
This adapter has a red connector on one end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only on the car.
Yellow Cable
Yellow CAN adapter lead ( "Adapter 3" on MultiECUScan website)
-Designed to allow access to the low-speed CAN system on supported vehicles.
This adapter has a yellow connector on one end for easy identification.
Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9
Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.
Purple Cable

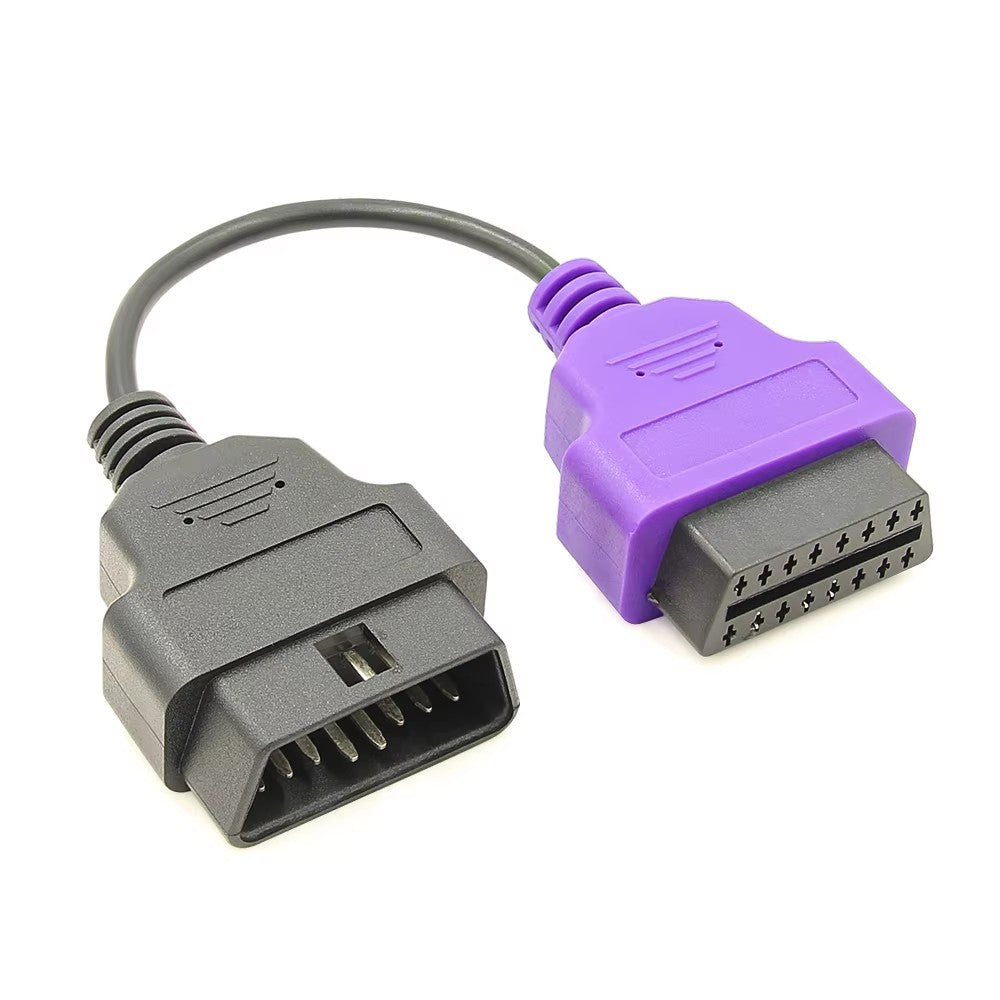

Purple Electric hood adapter lead ( "Adapter 4" on MultiECUScan website)
-Designed to allow access to the electric hood system on supported vehicles.
This adapter has a purple connector on the end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to pins 7,8,11 & 13 one the car.
