Product Introduction
LCD series instruments are a new generation of automotive products that replace the traditional mechanical and direct-sensing ones. The product uses advanced single-chip technology to display the safety parameters of automobile engine directly with LCD screen. The are many characteristics, such as intuitive display, high accuracy, low power consumption, good stability, strong anti-vibration ability, wide application scope, convenient installation, long service life and complete protection functions. At present, it is the preferred product to measure engine performance.

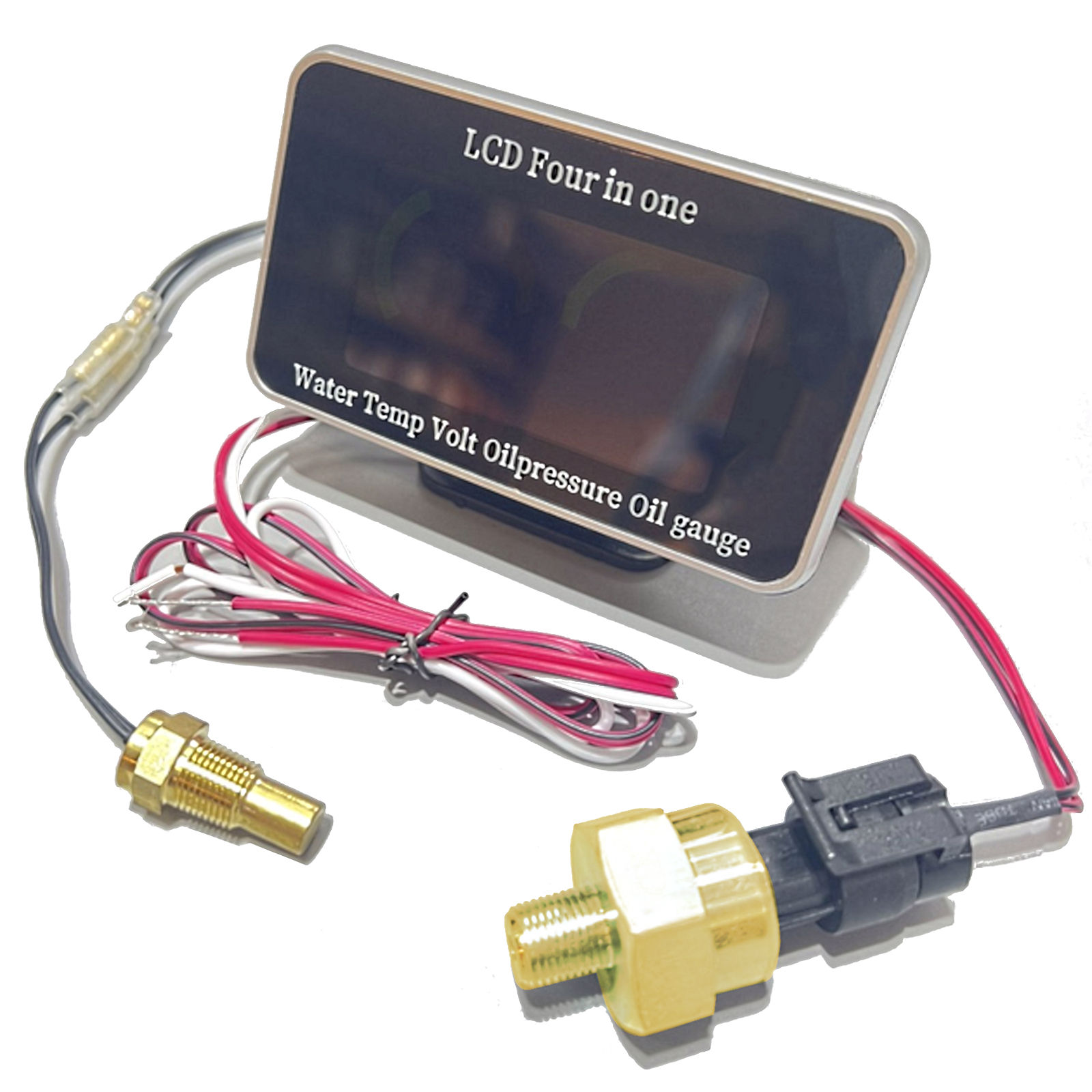

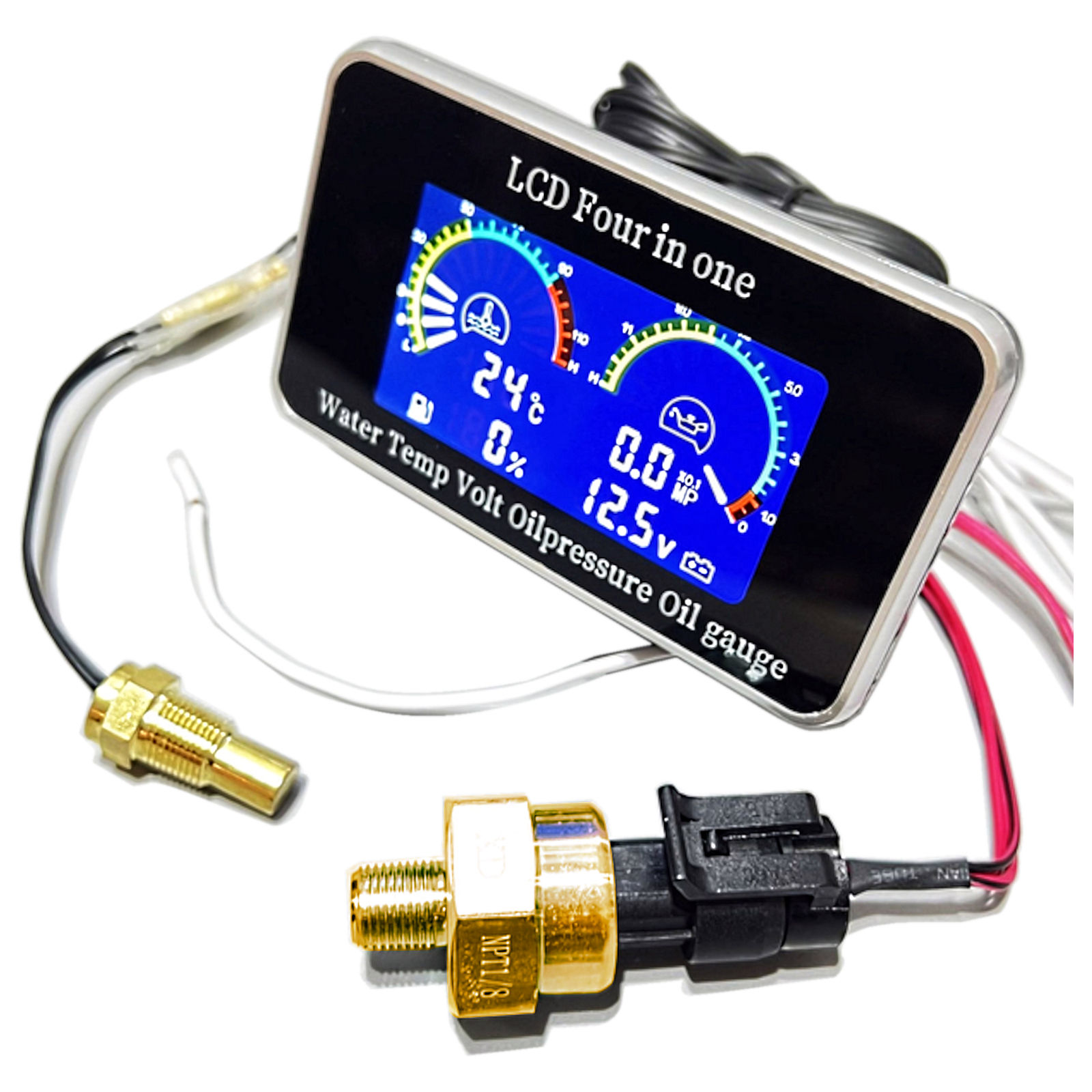

1. Four-in-one table matches functions of each group. (Voltage and water temperature, voltage and oil, water temperature and oil, water and oil volume.)
2. Ultra Wide Voltage Operation. (When the voltage exceeds 40 volts, it can work normally.)
3. Prevent oil shaking. (When the vehicle bumps, it can work normally.)
4. Oil volume sensor quick setting function. (Chose the type of the vehicle quickly and conveniently.)
5. Self-learning function. (Oil sensor resistance of any type of vehicle can be matched.)
Feature:
1. Working voltage:DC9-36V
2.Working environment temperature:-40-50℃; humidity of working environment:45%-75%RH
3. Parameter test and alarm point
Voltage test range: 9-39V
measurement accuracy:±0.1%
When the alarm voltage is below 10V or 16-20V or higher than 31V，it will flash and alarm.
Water temperature measurement range:-10~120℃
measurement accuracy: ±0.1%
When the temperature is higher than 95'℃, it will flash and alarm.
Oil test range:0~1.0MP
measurement accuracy: ±0.1%
When it is lower than 0.1MP, it will flash and alarm.
Oil resistance range:5~1000
measurement accuracy: ±0.1%
When it is lower than 10% it will flash and alarm.

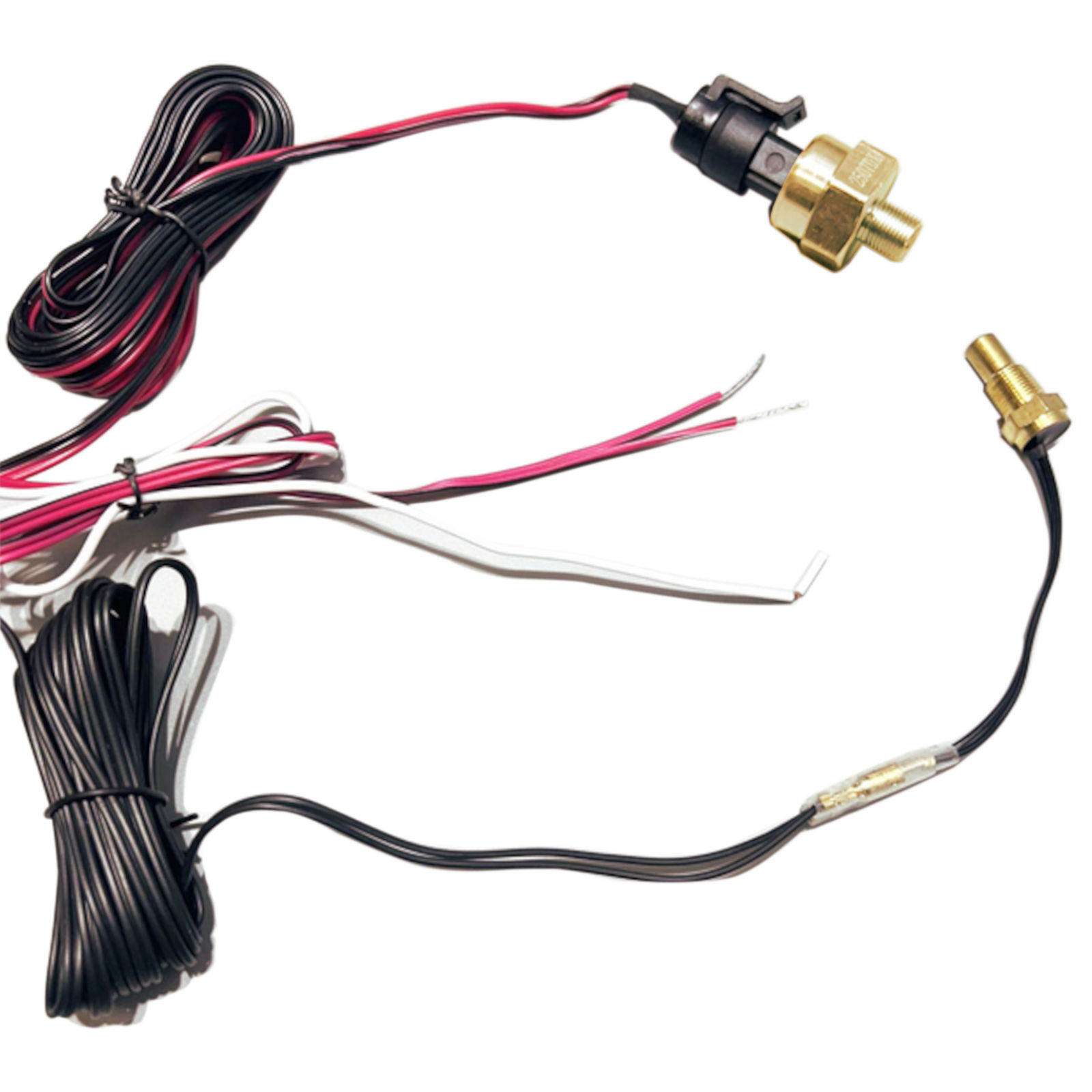

Sensor size:
the water temperature sensor size : NPT M10 10mm;
!!! Notes: The instruments and sensors in this product must be used together and must not be mixed or matched with products from other manufacturers and brands, otherwise the customer will bear the losses caused by this.
